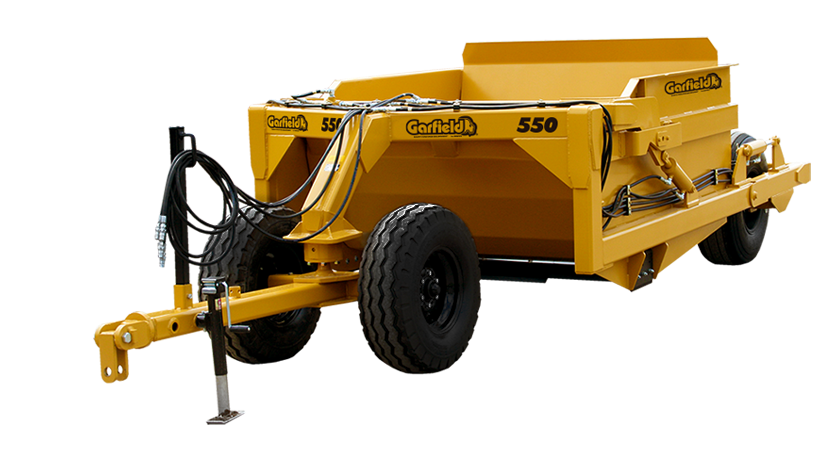

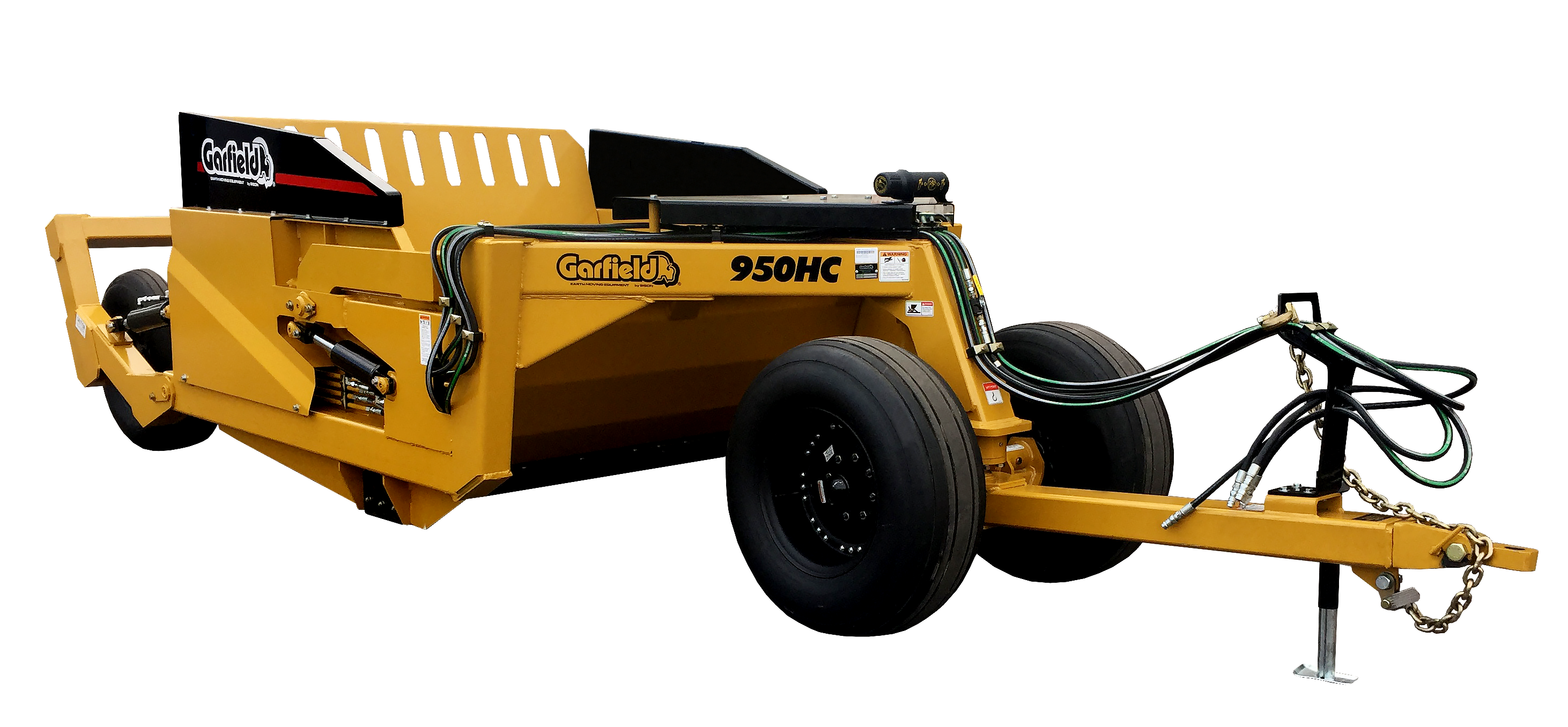

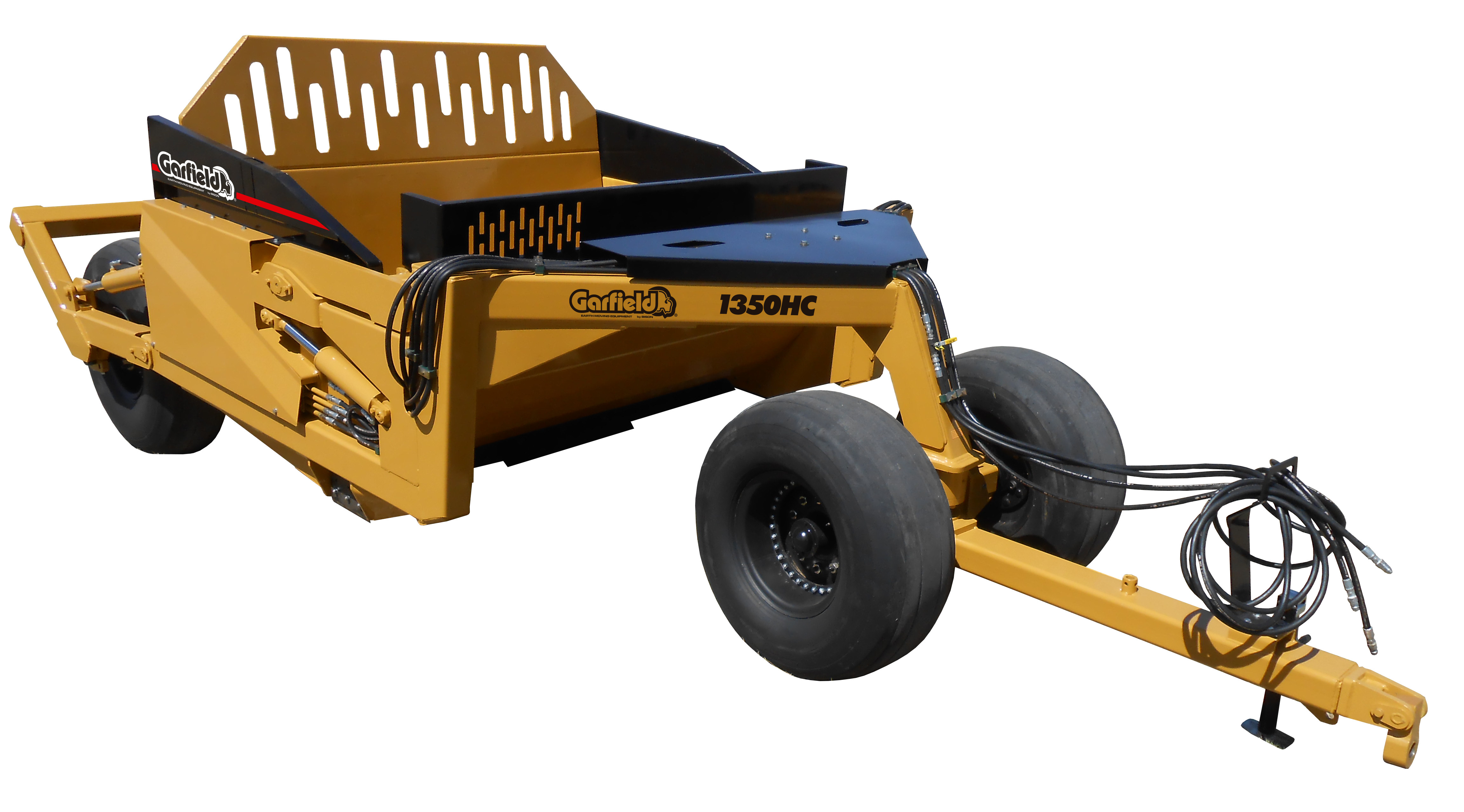

When you need to move a lot of material, the Garfield Ejection Scraper is the right machine for the job. The Garfield Ejection Scraper comes standard with hydraulically-operated rear gates using forward-forced straight ejection to achieve a smooth, even spread of material at the desired depth.
The rear hinge design allows the bowl to set on the ground when loading, this makes loading require less horsepower than a traditional front hinge scraper. Optional Laser/gps mount, as well as tandem hitch, are available for all models.
The Garfield Ejection scraper is available in 4 sizes from 5 to 13 cubic yard capacity.
The Garfield Ejection Scraper Is the perfect tool for:
FEATURES | GCA550 | GCA950HC | GCA1250HC | GCA1350HC |
---|---|---|---|---|
YD/Heaped Capacity | 5.5 | 9 | 12.5 | 13 |
YD/Struck Capacity | 4 | 6.4 | 9.63 | 10 |
IN/Cutting Width | 72" | 84" | 108" | 108" |
LB/Approx. weight | 5,260 | 9,259 | 12,131 | 12,680 |
IN/Overall width | 85" | 99" | 125" | 125" |
IN/Ground clearance | 10" | 13.75" | 16" | 16" |
HP/Power required | 80+ | 120-160 | 200+300 | 200+300 |
Tire Size Front | 11x15 | H40x14.5-19 (10 holes) | H44.5x16.5-21/10 | H44.5x16.5-21/10 |
Tire Size Rear | 12.5x16 | 40x14.5x19 (10 holes) | 20x20 | 20x20 |
